Aperçu /Produits/Module de caméra infrarouge/AMG8833 IR Temperature Sensor 8*8 Imager Array Temperature Sensor Module 8x8 Camera Thermal Infrared Sensor

AMG8833 IR Temperature Sensor 8*8 Imager Array Temperature Sensor Module 8x8 Camera Thermal Infrared Sensor

1 Piece
MOQ
$30.00(1 - 9 pieces) $28.00(10 - 99 pieces) $26.00(100 - 499 pieces) $24.00(>=500 pieces)
Prix
AMG8833 IR Temperature Sensor 8*8 Imager Array Temperature Sensor Module 8x8 Camera Thermal Infrared Sensor
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: AMG8833
Type: Temperature Sensor
Usage: PCB
Theory: temperature
Output: 5V
Description: Thermal Imager Sensor
Style: Temperature Sensor
Size: 17.8MM x 17.8MM
Condition: New
Accuracy: + - 2.5°C (4.5°F)
Maximum frame rate: 10Hz
Power supply: 3~5V
Temperature Measurement Range: 0°C to 80°C (32°F to 176°F)
MOQ: 1pcs
Package: SMD
is_customized: Yes
Informations de base
Model Number: AMG8833
Conditions de paiement et expédition
Description de produit
Product Description

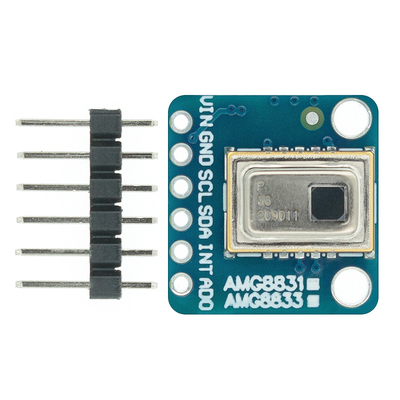

The AMG8833 infrared camera sensor is an 8x8 infrared thermal sensor array. When connected to your microcontroller (or Raspberry
Pi), it will return a set of 64 individual infrared temperature readings via I2C. It's like those fancy thermal cameras, but it's
compact and simple and easy to integrate. The AMG8833 offers higher performance than the previous AMG8831. The sensor only
supports I2C and has a configurable interrupt pin that can be triggered when any single pixel is above or below your set
threshold.
2. It can detect humans from a distance of up to 7 meters (23) feet. It is a perfect fit for creating your own human detector or
mini camera. We use this breakthrough code on or compatible (sensor communicates via I2C) or on Python's Raspberry Pi. On the Pi,
thanks to the image processing help of the SciPy python library, we can insert an 8x8 grid and get some very good results!
Specification
Accuracy
+ - 2.5°C (4.5°F)
Maximum frame rate
10Hz
Power supply
3~5V
Temperature Measurement Range
0°C to 80°C (32°F to 176°F)
