Analog HD 1080p 2MP TVI Color CMOS CCTV Camera Module Panel TVI Night Vision 1/3"

10 Pieces
MOQ
Analog HD 1080p 2MP TVI Color CMOS CCTV Camera Module Panel TVI Night Vision 1/3"
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: S-BC-TVI322
Special Features: Analog Board TVI, Analog High Definition
Sensor: CMOS
Style: TVI Camera Board module
Type: Analog Camera
Technology: IR-CUT filter
Horizontal resolution: 1/3" 2mp TVI camera
Effective pixel: 2mp 1080p
Chip: IMX322+AVS05P
Lux: 0.001LUX
IR sensor: With IR cut to be D/N
Size: 38*38mm /32*32mm
Sensor feature: Day only, With IR cut to be D/N
Feature: Single layer , IR sensor
Warranty: 2 years
Informations de base
Model Number: S-BC-TVI322
Conditions de paiement et expédition
Packaging Details: 25pcs one tray ,10 trays one carton
Supply Ability: 18000 Set/Sets per Month
Description de produit
Product Description

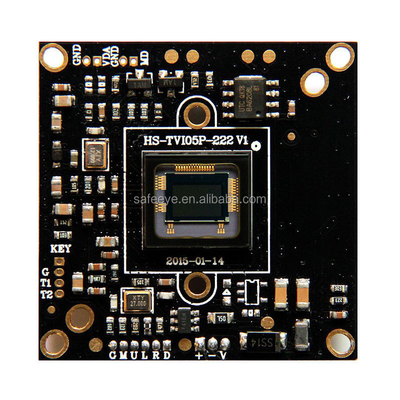

Night Vision TVI high resolution 2mp TVi camera board camera module Support IR Cut

Specifications

1. Resolution: 1/2.8" 2mp 1080P high resolution board

2. Chip: PAL/NTSC: IMX322+AVS05P

3. 0.001Lux

4. WDR, Multi-object Auto-tracking

4. IR sensor, With IR cut to be D/N

5. Size: 38*38mm

6. Excellent performance, clear and bright picture with competitive price


2mp TVi camera board camera module

Specifications:

Sensor 1/2.8" SONY IMX322 CMOS
SystemPAL 50HzNTSC 60Hz
Effective PixelPAL:1920(H)×1080(V)NTSC:1920(H)×1080(V)
Illumination0.001 LUX / F1.2
Resolution2.0MP 1080P TVI
Main Functionmulti-object tracking
E-zoom
WDR
DNR
Gamma0.45
Electronics Shutter1/50~1/100000s1/60~1/100000s
S/N>46dB
Video Output1.0V p-p
Operation Temperature-20 º C TO 60 º C
PowerDC12V (±10%)

2mp TVi camera board camera module

Optional accessories:

Company Information

SafeEye Technology Corporation owns well-known brands: SafeEye

has over 10 year experience in the security(CCTV) industrial field. As a national high-tech enterprise in shenzhen,passed the ISO9001 and ISO14001 certification, CE, FCC, RoHS and the like.

Our products are widely applied in government, finance, telecom, traffic, airport, seaport, post office, electric power and intelligent building,SafeEye Technology products have enjoyed high reputation in local China market and have been sold to more than 40 countries and regions, our customers mostly from United States, Europe,Japan, Israel, SouthKorea .

some of our series camera as below:

The IP function,

The fisheye camera and Panoramic cameras (130 degree,180 degree,360 degree),

The Low Lux (Day & night color) function( illumination: 0.00001Lux),

The SWDR function (Backlight)

The HD-AHD function, (BNC connect, 2.0 megapixel)

The License Plate Recognition function(parking Lot and highway etc)

The Motorized Zoom Lens function(Motor adjustable zoom to 4x or more)

You can choose one or more function are combined in the product. For example, IP and panorama. IP and LPR. IP and Motorized Zoom Lens and Low Lux, etc

Packaging & Shipping

1.The package will be shipped from China via Express air or by sea as your request. The tracking number will E-mail to you when the item sent, usually it takes 4~5 working days to arrive by air;it takes 10~45 days to arrive by sea depending on the port.

2. Air freight (we have strong cooperation with DHL, TNT, FEDEX, EMS, you can also choose your own shipping forwarder)

DHL is the most popular delivery choice for it's fast speed and cheaper price. You also can choosing your own shipping forwarder.

Our Services

1. The product is based on Ex-works for 1-50pcs, FCA shenzhen for 50-500pcs, FOB shenzhen for above 500pcs.
2. Payment term:100% payment in advance before shIpment (T/T, Western Union ,paypal,cash or any other means at your convenience)
3. Delivery Time:sample order: 1-3 working day, Normal order:longer than 3 working days according to the order quanity
4. All the above products have CE ,FCC and ROHS certificates
5. Welcome OEM & ODM order,MOQ for OEM is 50pcs/model
6. Power adapter isn't included in above prices, it's optional
7. Price Validity: 30 days from issuing date.
8. Warranty: 3 years after receiving goods,unlimited lifetime Technique support.
9.If quanity more than 100pcs one model, we will free supply some camera parts for preapre exchange
Warranty Policy
1,We provide 3 years of warranty period for cameras and DVRs start from the shipment date,we take all the responsibility for the defective rate!
2,Professional technical support team to support our customers all the time!

FAQ

How to choose a suitable CCTV camera for your needs?
1) Location: Indoor or outdoor application
2) Requirement for day and night surveillance
3) The angle of view Lens requirement . Wide angle coverage or a narrow field
4)Budget

How to order security camera rohs :
1. Tell us the models and quantity with all the specific requests.
2. Proforma invoice will be sent to you to confirm after inquiries were soleved, order will be arranged when payment cleared.
3. We trace the status of order with you by tracking number until you get it safely.

What the Payment terms:
T/T,Western Union,VISA,Mastercard,Escrow, paypal and so on; L/C is welcome.
1. We can arrange to produce in advance once we get the bank slip of deposit.
2. Order value less than 20,000USD, 100% payment before production;
3. Order value more than 20,000USD, 30% deposit. 100% paid before shipment.

Q.May I print our company logo on package box and Camera?
A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise Three years warranty for all our products.
Q.What is Minimum Order Quantity?
A:Min Order Quantity is 10pcs,but sample order is welcome.
Q.What is Carton box quantity?
A: Big carton box size: 74*39*56cm max quantity: 20pcs
Q: Can We to be your Agency in our Country?
A: Of Course, welcome to be SafeEye Security Products agency in your country, we will try best support for you.

Click “send” to get the latest price list from us.
