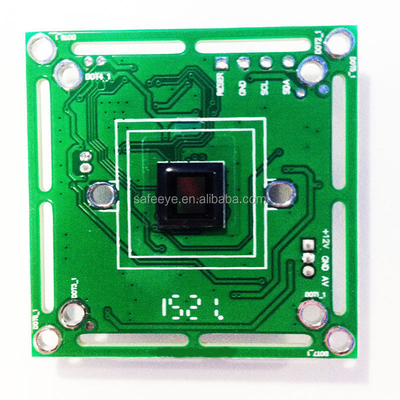

Analog CMOS 950TVL Aptina MT9V139+8510 Color CMOS Camera Surveillance Module Board Camera HD Night Vision 1/4"

1 Piece
MOQ
Analog CMOS 950TVL Aptina MT9V139+8510 Color CMOS Camera Surveillance Module Board Camera HD Night Vision 1/4"
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Model Number: S-BC139-8510
Special Features: Analog Board camera, Single layer,IR sensor,D/N
Sensor: CMOS
Style: board camera module
Type: Analog Camera
Technology: OSD,Single layer,IR sensor,D/N ,
Horizontal resolution: 1/4" CMOS 950TVL 139
Effective pixel: 720(H) x 576(V)
Chip: 139/ASX340+8510
Lux: 0.01LUX
IR sensor: With IR cut to be D/N
Size: 32*32mm or 38*38mm
Certificates: CE/FCC/RoHS
Power Supply: DC12V,65mA
Warranty: 2 years
Informations de base
Certification: CE/FCC/RoHS
Model Number: S-BC139-8510
Conditions de paiement et expédition
Packaging Details: 25pcs/plate, 500pcs/ctn
Supply Ability: 18000 Set/Sets per Month
Description de produit
Product Description

China top ten selling HD Night Vision 1/4" CMOS 950TVL Aptina MT9V139+8510 Color cmos Camera Surveillance Module
With IR cut to be true day and night

Features:

1. 1/4 Color CMOS 950TVL

2. Single layer, 0.1 LUX,

3. Size: 32*32mm or 38*38mm

4. D/N ,IR sensor,DC12V,65mA.

5. Single layer ,Day only, IR sensor,With IR cut to be D/N

6. pcb board module

7. PAL/NTSC:139/ASX340+8510

Specifications:

Item No.S-C139+8510
Resolution1/4 Color CMOS,950TVL
ChipPAL/NTSC:139+8510
FeatureSingle layer ,Day only, IR sensor,
With IR cut to be D/N
LUX0.1LUX
Image Sensor1/4 Color CMOS
System of SignalNTSC/PAL
Horizontal Resolution950TVL
Backlight compensationAuto
Backlight compensationAuto
Electronic shutter1/50(1/60)~1/100,000 SEC
Lens mount3.6mm/4mm/6mm/8mm/12mm/2.8mm
White balanceAuto
S/N Ratio>48dB
Gamma Correction>0.45
PowerDC12V,65mA.
Operation temperature- 20 0C~80 0C
Sync. SystemInternal
Video Output1.0Vp-p75 ohm
Size38mm*38mm/32mm*32mm

1/4" CMOS 950TVL 139 Color cmos Camera Surveillance Module digital camera board

Company Information

SafeEye Technology Corporation owns well-known brands: SafeEye

has over 10 year experience in the security(CCTV) industrial field. As a national high-tech enterprise in shenzhen,passed the ISO9001 and ISO14001 certification, CE, FCC, RoHS and the like.

Our products are widely applied in government, finance, telecom, traffic, airport, seaport, post office, electric power and intelligent building,SafeEye Technology products have enjoyed high reputation in local China market and have been sold to more than 40 countries and regions, our customers mostly from United States, Europe,Japan, Israel, SouthKorea .

some of our series camera as below:

The IP function,

The fisheye camera and Panoramic cameras (130 degree,180 degree,360 degree),

The Low Lux (Day & night color) function( illumination: 0.00001Lux),

The SWDR function (Backlight)

The HD-AHD function, (BNC connect, 2.0 megapixel)

The License Plate Recognition function(parking Lot and highway etc)

The Motorized Zoom Lens function(Motor adjustable zoom to 4x or more)

You can choose one or more function are combined in the product. For example, IP and panorama. IP and LPR. IP and Motorized Zoom Lens and Low Lux, etc

Packaging & Shipping

1.The package will be shipped from China via Express air or by sea as your request. The tracking number will E-mail to you when the item sent, usually it takes 4~5 working days to arrive by air;it takes 10~45 days to arrive by sea depending on the port.

2. Air freight (we have strong cooperation with DHL, TNT, FEDEX, EMS, you can also choose your own shipping forwarder)

DHL is the most popular delivery choice for it's fast speed and cheaper price. You also can choosing your own shipping forwarder.

Our Services

1. The product is based on Ex-works for 1-50pcs, FCA shenzhen for 50-500pcs, FOB shenzhen for above 500pcs.
2. Payment term:100% payment in advance before shIpment (T/T, Western Union ,paypal,cash or any other means at your convenience)
3. Delivery Time:sample order: 1-3 working day, Normal order:longer than 3 working days according to the order quanity
4. All the above products have CE ,FCC and ROHS certificates
5. Welcome OEM & ODM order,MOQ for OEM is 50pcs/model
6. Power adapter isn't included in above prices, it's optional
7. Price Validity: 30 days from issuing date.
8. Warranty: 3 years after receiving goods,unlimited lifetime Technique support.
9.If quanity more than 100pcs one model, we will free supply some camera parts for preapre exchange
Warranty Policy
1,We provide 3 years of warranty period for cameras and DVRs start from the shipment date,we take all the responsibility for the defective rate!
2,Professional technical support team to support our customers all the time!

FAQ

How to choose a suitable CCTV camera for your needs?
1) Location: Indoor or outdoor application
2) Requirement for day and night surveillance
3) The angle of view Lens requirement . Wide angle coverage or a narrow field
4)Budget

How to order security camera rohs :
1. Tell us the models and quantity with all the specific requests.
2. Proforma invoice will be sent to you to confirm after inquiries were soleved, order will be arranged when payment cleared.
3. We trace the status of order with you by tracking number until you get it safely.

What the Payment terms:
T/T,Western Union,VISA,Mastercard,Escrow, paypal and so on; L/C is welcome.
1. We can arrange to produce in advance once we get the bank slip of deposit.
2. Order value less than 20,000USD, 100% payment before production;
3. Order value more than 20,000USD, 30% deposit. 100% paid before shipment.

Q.May I print our company logo on package box and Camera?
A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise Three years warranty for all our products.
Q.What is Minimum Order Quantity?
A:Min Order Quantity is 10pcs,but sample order is welcome.
Q.What is Carton box quantity?
A: Big carton box size: 74*39*56cm max quantity: 20pcs
Q: Can We to be your Agency in our Country?
A: Of Course, welcome to be SafeEye Security Products agency in your country, we will try best support for you.
