2MP HD SDI=== hd sdi camera 1080P 1/3 panasonic34227+NVP2421
Specifications
1, 1/3 Panasonic 2.0 megapixel SONY CMOS sensor, 1080p
2,1080P high resolution
3,support alarm function,
4,HD-SDI video output
5,support EXT External signal synchronization to black
6,Support PIP function
7, support 2D-DNR and 3D-DNR function
2mp hd sdi camera 1080P 1/3 panasonic34227+NVP2421
Please note: This is a chip with no OSD menu function
Specifications:
Specification | Description | Details |
Image Sensor | panasonic34227+NVP2421 | 1/3" inch progressive CMOS, 2.0Megapixel |
Effective Pixels | 1920(H)x1080(V)=2,122,848 Pixel | |
Total Pixels | 2010(H)x1108(V)=2,227,080 Pixel | |
Scanning System | Progressive Scan | |
Lens Control | DC IRIS | Automatic by PWM control |
Shutter Speed | 1/30(25)~1/60,000 | |
Resolution | Horizontal TVL | 1300TVL |
Vertical TVL | 1200TVL | |
Picture | S/N Ratio | More than 50dB |
Min,Illumination | 0.1Lux(@50IRE/F1.2) | |
0.1Lux(Sense-Upx4) | ||
Video Mode | Frame-Rate | 1080P(30P,25P),720P(30P,25P) |
(H)x (V) | 1920(H)x1080(V)/1280(H)x720(V) | |
Output Format | Digital Output | BT.1120 |
Analog Output | HD-SDI(SMPTE274M) NTSC/PAL(960H) | |
Power | Supplied Voltage | DC12V(6V~18V) |
Temperature | Operating Temperature | -10°C~50°C |
Storage Temperature | -20°C~70°C | |
Dimenson | PCB SIZE:(W)x(H) | 38(L)mmx38(W)mmx1BOARD PCB 1.0(T)mm |
Accessories | Plate FFC Cable | 0.5mmx30Pinx120mmxC |
LENS &Lens Mount OPTION | C/CS Mount&FIX Type M12,M14 |

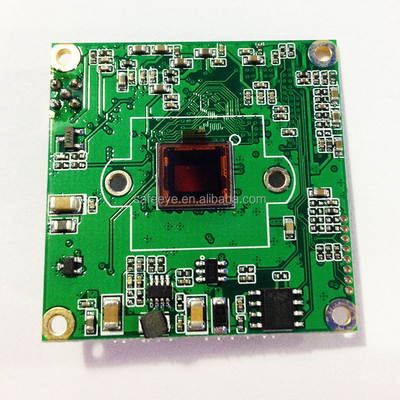

SDI Security camera hd sdi camera 1080P 1/3 panasonic34227+NVP2421 Photos
Optional accessories:
SafeEye Technology Corporation owns well-known brands: SafeEye
has over 10 year experience in the security(CCTV) industrial field. As a national high-tech enterprise in shenzhen,passed the ISO9001 and ISO14001 certification, CE, FCC, RoHS and the like.
Our products are widely applied in government, finance, telecom, traffic, airport, seaport, post office, electric power and intelligent building,SafeEye Technology products have enjoyed high reputation in local China market and have been sold to more than 40 countries and regions, our customers mostly from United States, Europe,Japan, Israel, SouthKorea .
some of our series camera as below:
The IP function,
The fisheye camera and Panoramic cameras (130 degree,180 degree,360 degree),
The Low Lux (Day & night color) function( illumination: 0.00001Lux),
The SWDR function (Backlight)
The HD-AHD function, (BNC connect, 2.0 megapixel)
The License Plate Recognition function(parking Lot and highway etc)
The Motorized Zoom Lens function(Motor adjustable zoom to 4x or more)
You can choose one or more function are combined in the product. For example, IP and panorama. IP and LPR. IP and Motorized Zoom Lens and Low Lux, etc
1.The package will be shipped from China via Express air or by sea as your request. The tracking number will E-mail to you when the item sent, usually it takes 4~5 working days to arrive by air;it takes 10~45 days to arrive by sea depending on the port.
2. Air freight (we have strong cooperation with DHL, TNT, FEDEX, EMS, you can also choose your own shipping forwarder)
DHL is the most popular delivery choice for it's fast speed and cheaper price. You also can choosing your own shipping forwarder.
1. The product is based on Ex-works for 1-50pcs, FCA shenzhen for 50-500pcs, FOB shenzhen for above 500pcs.
2. Payment term:100% payment in advance before shIpment (T/T, Western Union ,paypal,cash or any other means at your convenience)
3. Delivery Time:sample order: 1-3 working day, Normal order:longer than 3 working days according to the order quanity
4. All the above products have CE ,FCC and ROHS certificates
5. Welcome OEM & ODM order,MOQ for OEM is 50pcs/model
6. Power adapter isn't included in above prices, it's optional
7. Price Validity: 30 days from issuing date.
8. Warranty: 3 years after receiving goods,unlimited lifetime Technique support.
9.If quanity more than 100pcs one model, we will free supply some camera parts for preapre exchange
Warranty Policy
1,We provide 3 years of warranty period for cameras and DVRs start from the shipment date,we take all the responsibility for the defective rate!
2,Professional technical support team to support our customers all the time!
